Our RhinoGuard steel is designed to meet important industry standards, ensuring strong performance, long-lasting use, and consistent quality across various applications. Below are the key specifications that highlight the features and capabilities of our steel coils.
Performance Features and Product Specifications

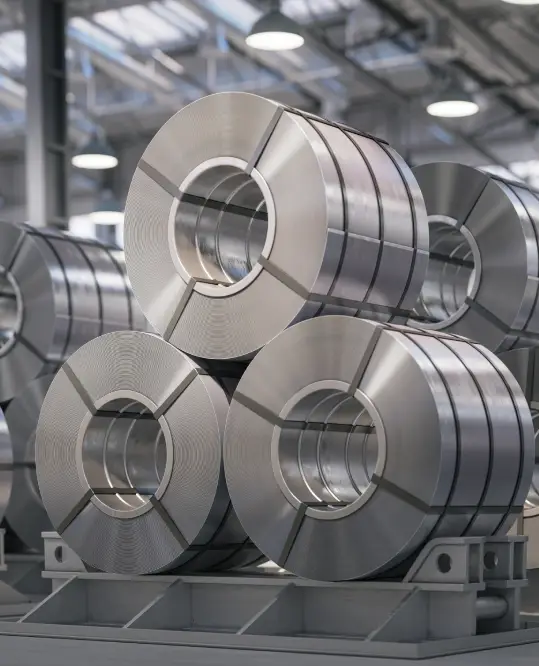

Our RhinoGuard steel coils come in commercial and structural grades, offering versatility for various applications like residential roofing, industrial cladding, and appliance casing. They are designed to provide an ideal balance of strength and flexibility to meet industry needs.
Built to resist corrosion, temperature changes, mechanical stress, and UV exposure, our RhinoGuard steel ensures long-lasting durability and maintains its appearance. The protective coating and quality steel work together to extend the product’s lifespan, making it a trusted choice for builders and manufacturers.
Our RhinoGuard steel products are designed to meet industry-specific performance requirements. We offer:
Thickness
0.18 mm to 1.20 mm
COATING MASS
AZM20, AZM30, AZM70, AZM100, AZM150
Standards
ASTM A792 / A792M, ASTM A924 / A924M
(JIS, EN, and IS are available on request)
COIL ID
508 – 762mm (Max. weight: 15 MT)
Width
750mm to 1250mm (below 750mm will be slit coils)
| RhinoGuard (GL) Line Capacity and Specifications | |
|---|---|
| Production Capacity | 180,000 – 200,000 MT per annum |
| Thickness | 0.18 mm – 1.20 mm |
| Width | 750 mm to 1250 mm (Note: Widths less than 750 mm are available through the slitting route post-coating.) |
| Coating Mass (gsm) | 20 gsm – 150 gsm |
| Coil ID | 508 – 762mm |
| Coil Weight | 5 tons – 15 tons |
| Other | Custom products available with differential GSM on the top and back sides |
| Available Standards | ASTM A792/A792M, ASTM A924/A924M |
| Other Standards | JIS, EN, and IS are available on request |
| Mechanical Properties of Different Grades Available | ||||
|---|---|---|---|---|
| Inch – Pound Units | ||||
| Sl No. | Grade | Yield Strength, KSI (min) | Tensile Strength (TS), KSI (min) | Elongation in 2in, min |
| 1 | 33 | 33 | 45 | 20 |
| 2 | 37 | 37 | 52 | 18 |
| 3 | 40 | 40 | 55 | 16 |
| 4 | 50 Class 1 | 50 | 65 | 12 |
| 5 | 50 Class 2 | 50 | … | 12 |
| 6 | 50 Class 4 | 50 | 60 | 12 |
| 7 | 60 | 60 | 70 | 10B |
| 8 | 70 | 70 | 80 | 9B |
| 9 | 80 Class 1C | 80D | 80 | … |
| 10 | 80 Class 2C,B | 80D | 82 | … |
| 11 | 80 Class 3 | 80D | 82F | 3 |
| SI Units | ||||
|---|---|---|---|---|
| Sl No. | Grade | Yield Strength, Mpa (min) | Tensile Strength (TS), Mpa (min) | Elongation ᴬ in 50mm, (min) |
| 1 | SS 230 | 230 | 310 | 20 |
| 2 | SS 255 | 255 | 360 | 18 |
| 3 | SS 275 | 275 | 380 | 16 |
| 4 | SS 340 Class 1 | 340 | 450 | 12 |
| 5 | SS 340 Class 2 | 340 | … | 12 |
| 6 | SS 340 Class 4 | 340 | 410 | 12 |
| 7 | SS 410 | 410 | 480 | 10B |
| 8 | SS 480 | 480 | 550 | 9B |
| 9 | SS 550 Class 1C | 550ᴰ | 570 | … |
| 10 | SS 550 Class 2C,E | 550D | 570 | … |
| 11 | SS 550 Class 3 | 550D | 570N | 3 |
Note
- A Where an ellipsis … appears in the table, there is no requirement.
- B For sheet thickness of 0.028 in (0.71 mm) or thinner, the elongation requirement is reduced by two percentage points for SS grade 60(410) and 70(480).
- C For sheet thickness of 0.028 in or thinner, no tension test is required if the hardness result is Rockwell B85 or higher.
- D Since there is no discontinuous yield curve, the yield strength should be taken as the stress at 0.5% elongation under load or 0.02% offset.
- E SS grade 80(550) class 2 may exhibit different forming characteristics than class 1, due to a difference in chemistry.
- N Note: for Grade 80(SS550) Class 3 material, the purchaser should consult the supplier regarding the elongation and tensile test requirements.
Other Grades of Material
| Typical Ranges of Mechanical Properties (Non-Mandatory)A,B | ||||
|---|---|---|---|---|
| Longitudinal Direction Test | ||||
| Sl No. | Designation | Yield Strength (KSI) | Yield Strength (MPa) | Elongation in 2 in (50 mm) (%) |
| 1 | CS TYPE A | 30 / 60 | (205 / 410) | >20 |
| 2 | CS TYPE B | 35 / 60 | (245 / 410) | >20 |
| 3 | CS TYPE C | 30 / 65 | (205 / 450) | >15 |
| 4 | FS | 25 / 40 | (170 / 275) | >24 |
| 5 | DS | 20 / 35 | (140 / 240) | >30 |
| 6 | HTS | 30 / 65 | (205 / 450) | >15 |
Note
The “Typical Mechanical Properties” values provided are for reference only. They are intended to help purchasers make informed decisions about the steel they plan to purchase and are not mandatory specifications.
| Additional Information | ||||
|---|---|---|---|---|
|
||||
WE DELIVER NOT JUST SPECS- BUT ASSURANCE
At the core of Rhino Steel Industries operations is a deep-rooted commitment, not just to deliver RhinoGuard steel coils, but to provide solutions that redefine industry standards. We uphold well built standards at every stage of production. Every coil we produce at Rhino Steel Industries is the result of precision engineering, continuous improvement, and a clear vision to empower industries with long-lasting, high-performance steel. Our dedication extends beyond the product; it’s about reducing our nation’s reliance on imports, building self-sufficiency, and driving regional growth through trusted and reliable infrastructure. RhinoGuard is not just a material, it’s our promise for the future, designed to withstand the harshest environments of the GCC and beyond.
We take pride in a process that leaves nothing to chance. From auditing every manufacturing step to subjecting each product to rigorous testing like salt spray corrosion, coating adhesion, mechanical strength, gloss, and reflectivity, we make certain only the most reliable steel reaches the market. Our attention to detail reflects our broader commitment to excellence, safety, and long-term performance. Beyond technical specs, we value the trust our partners place in us. We are here not only to supply steel but to build lasting partnerships grounded in integrity, accountability, and a shared vision for a stronger, more sustainable industrial future.
